Contact Us- Specifications
QK-ALSC-BKC
Features
· Product Item: QK-ALSC-BKC01
· Materials: Aluminium A356-T6, Aluminium 6061-T6, Stainless Steel SS304/316, Brass C26000
· Surface Treatment: Black Anodic Oxidation, Passivation
· Sealing Material: NBR , EPDM, FPM, PTFE
· Casting Method: Casting, Forging, CNC Machining
. Standard: DIN 14334:2020, DIN 14333, DIN 14330
. Pressure: 1.00 MPA - 2.50 MPA

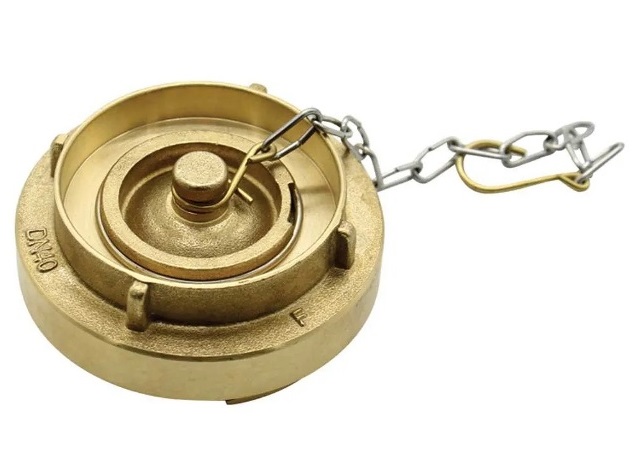

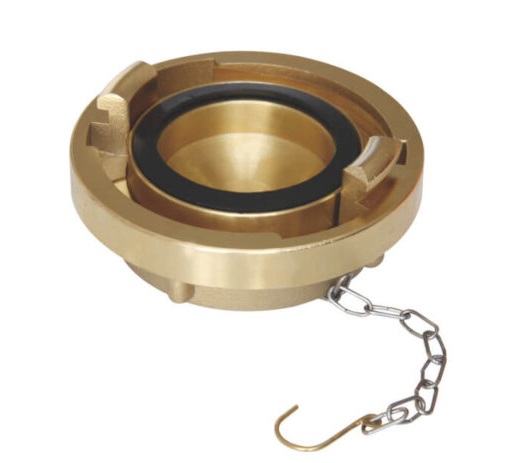

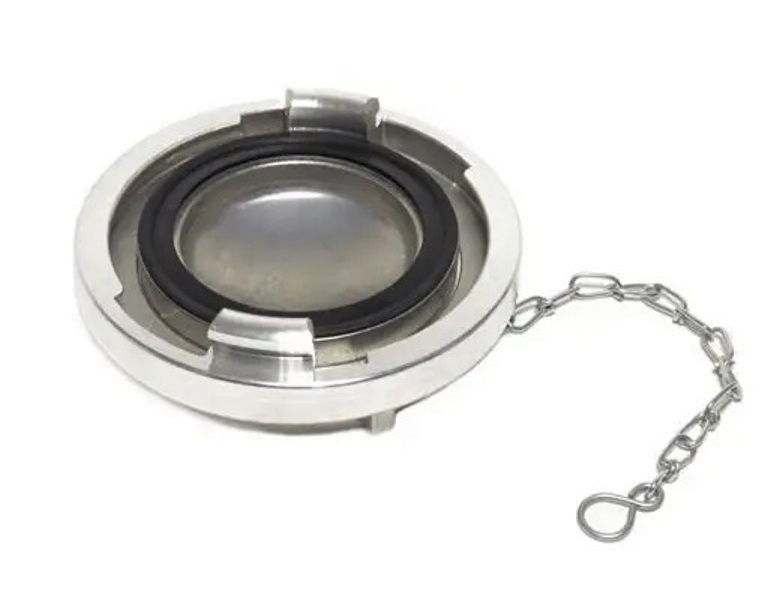

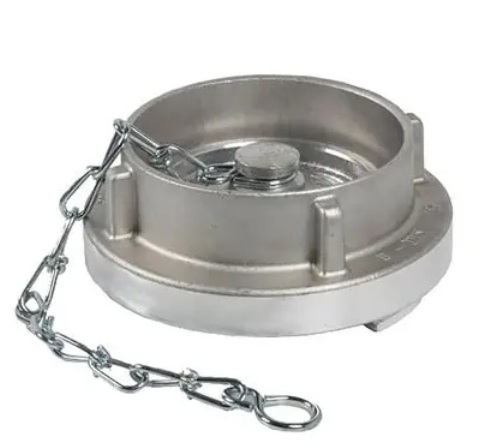

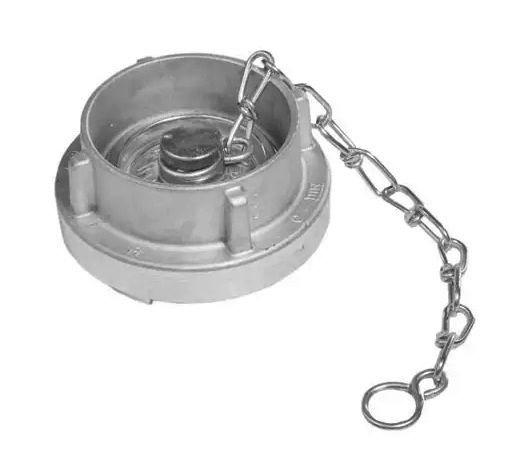

Storz coupling blank cap and chain are available in a range of sizes and possess 2 lugs as standard. They are available in aluminium and brass and are primarily used to temporarily seal Storz outlets. A nitrile seal is included as standard. A range of aluminium Storz coupling blank cap and chains are available to buy online at PAR Direct by clicking the link above. Alternatively, to make an enquiry for brass or stainless steel options, please click the 'enquire now' button above and state the product code and quantity you require.
Code | Size | Abbreviation | Working pressure (bar) |
QK-ALSC-BKC01 | DN 40 (1.5″) | Storz C 38 | 16 |
QK-ALSC-BKC02 | DN 50 (2″) | Storz C 52 | 16 |
QK-ALSC-BKC03 | DN 65 (2.5″) | Storz B 65 | 16 |
QK-ALSC-BKC04 | DN 80 (3″) | Storz B 75 | 16 |
QK-ALSC-BKC05 | DN 100 (4″) | Storz A 102 | 16 |
QK-ALSC-BKC06 | 4.25″ | Storz A 110 | 16 |
