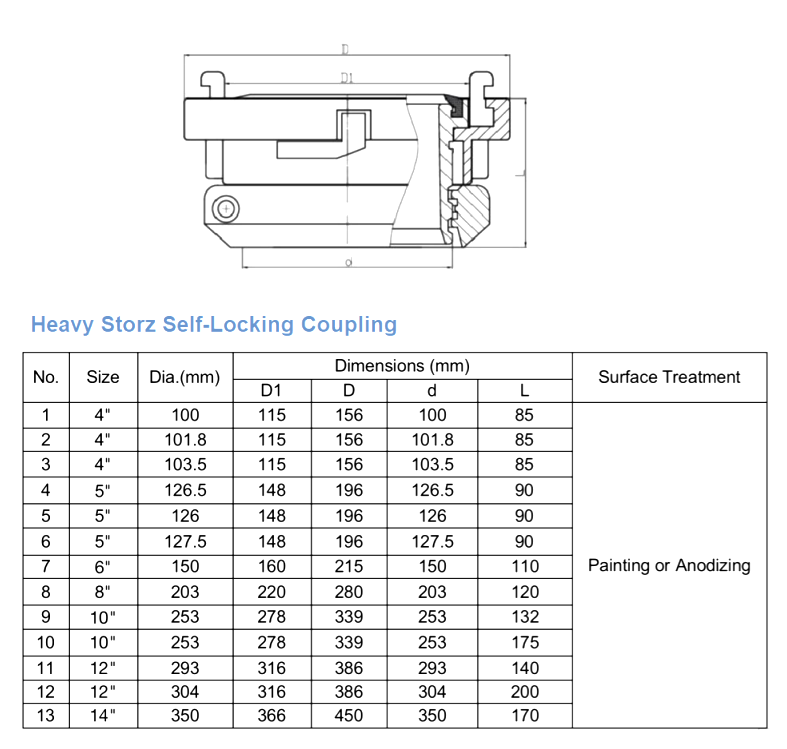

Heavy Storz Self-Locking Coupling

Features
·  Product Item: QK-ALSC-HYSL01
·  Materials: Aluminium A356-T6, Aluminium 6061-T6, Stainless Steel SS304/316, Brass C26000
·  Surface Treatment: Black Anodic Oxidation, Passivation
·  Sealing Material: NBR , EPDM, FPM, PTFE
·  Casting Method: Casting, Forging, CNC Machining
. Standard: DIN 14334:2020‌, DIN 14333, DIN 14330
. Pressure: 1.00 MPA - 2.50 MPA

FOB Reference Price:

Storz Couplings are one of the most popular hose coupling when connecting lay flat hoses. The 4-lug version is a specialty coupling used in the Industrial Fire market for large scale firefighting operations. The US Coupling 12” 4 Lug (305mm) Storz couplings consist of 3 primary components: Storz head, head end shank and a segmented collar. With a rated working pressure of 250 psi (17.2 bar), these Storz couplings provide a robust and reliable coupling when moving massive volumes of water.
