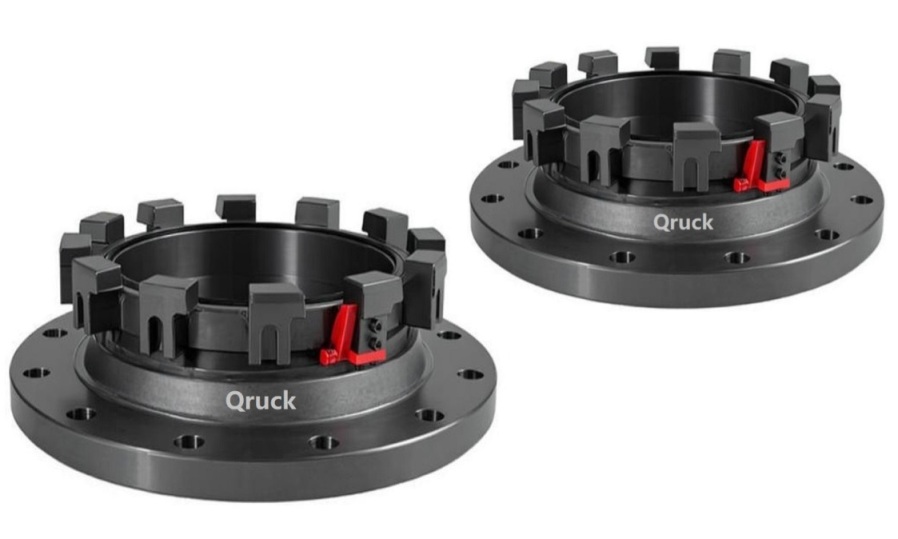

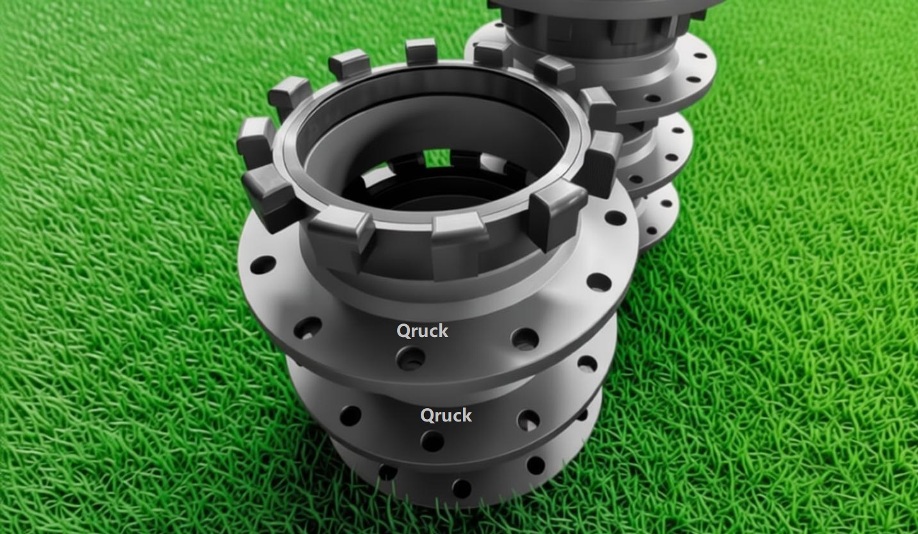

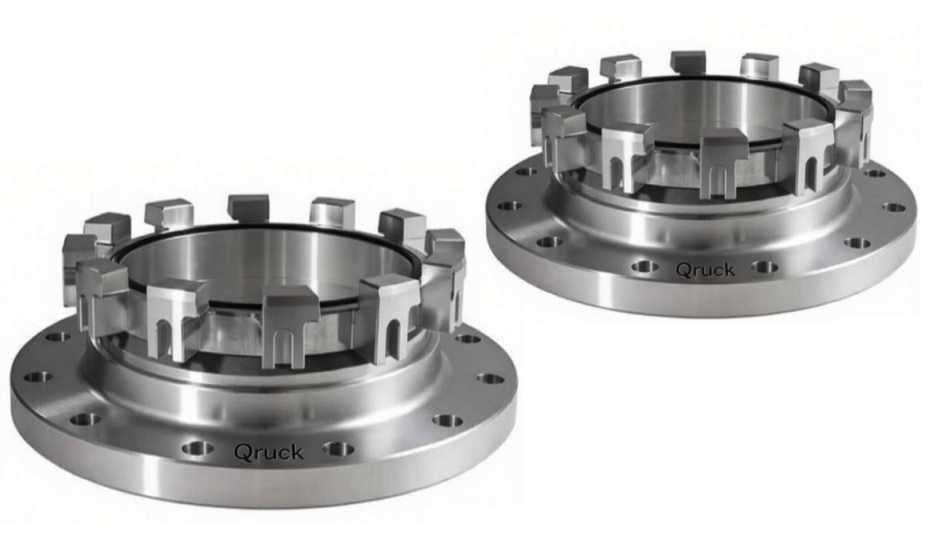

Firefighting Water Supply Suction Hose Multi-lug/Multi-tooth Flange Adapter Connector

Main Description

• Qruck’s Firefighting Water Supply Hose Multi-lug/ Multi-tooth Flange Connector consists of hose shanks with Multi-lug end, segmented bindings, sleeves, rubber seals and connection clips with screws & Nuts. The flange with bolts & nuts offers reliable and quick connection between hose and different equipments (Pump, Valve, Water Divider and others). And the follow both types of large Multi-lug coupling are available to our production.



  - Firefighting Water Supply Hose Multi-lug/Multi-tooth Flange Connector

  - Firefighting Water Suction Hose Multi-lug/Multi-tooth Flange Adapter

•

• Our Firefighting Water Suction Hose Multi-lug/Multi-tooth Flange Adapters supply higher pressure bearing capacity and safety. The "multi lug" design can distribute the locking force of the clamp more evenly, resulting in stronger clamping force. This enables it to withstand higher pipeline working pressure, and the anti vibration and anti impact capabilities at the connection are significantly improved, making the connection more stable and reliable.



  Qruck’s Firefighting Water Supply Hose Multi-lug/Multi-tooth Flange Connectors are particularly suitable for larger large bore layflat hose. When the layflat hose diameter is large or extreme conditions such as water hammer need to be treated, standard two bolt clamps may not provide sufficient sealing force. At this point, heavy-duty clamps with multiple lugs are a necessary choice as they can ensure long-term sealing of large pipeline systems under high pressure.
