Heavy Multi-lug Coupling

Qruck’s Multi-lug LDHC couplings, reducers and adapters supply higher pressure bearing capacity and safety. The "multi lug" design can distribute the locking force of the clamp more evenly, resulting in stronger clamping force. This enables it to withstand higher pipeline working pressure, and the anti vibration and anti impact capabilities at the connection are significantly improved. That makes the connection between large hose and pump, valve, water divider, water collector & other equipments, more stable and reliable

- Forging Aluminum Large Diameter Lay-flat Hose Multi-lug Victaulic Grooved Coupling W/O Flange
- Forging Aluminum Large Diameter Lay-flat Hose Multi-lug Reducer
- Forging Aluminum Large Diameter Lay-flat Hose Multi-lug Adapter W/O Blank Cap

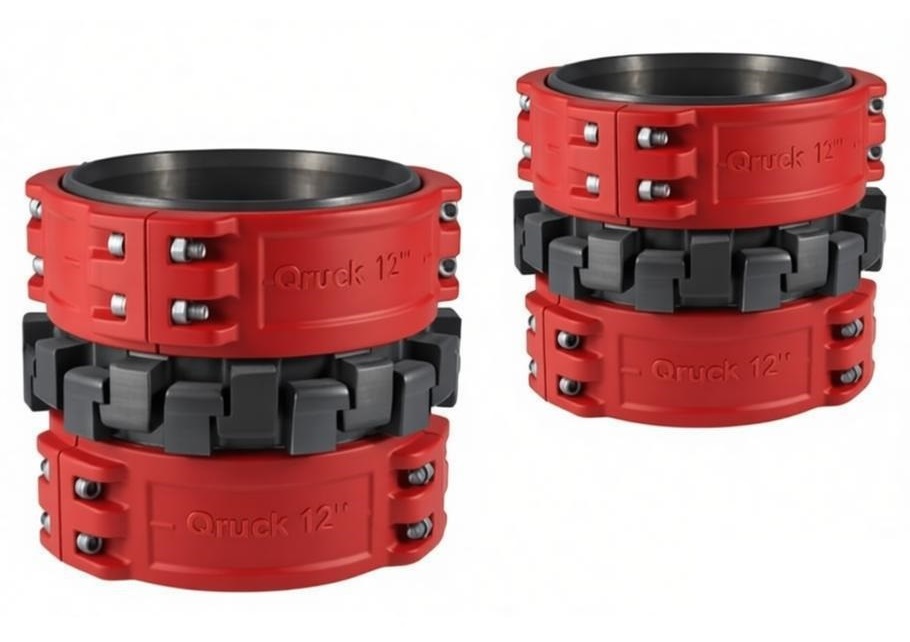

Multi-lug Grooved Coupling

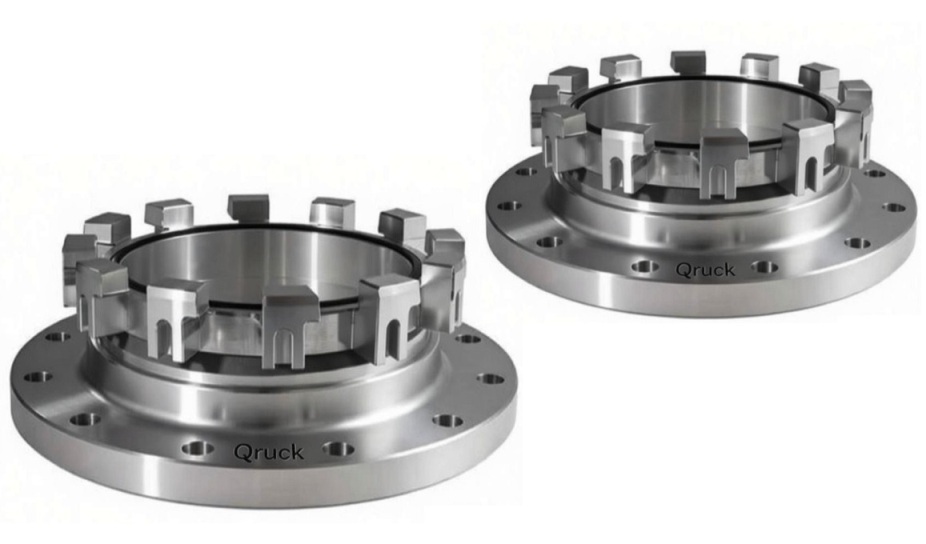

Flange Multi-lug Coupling

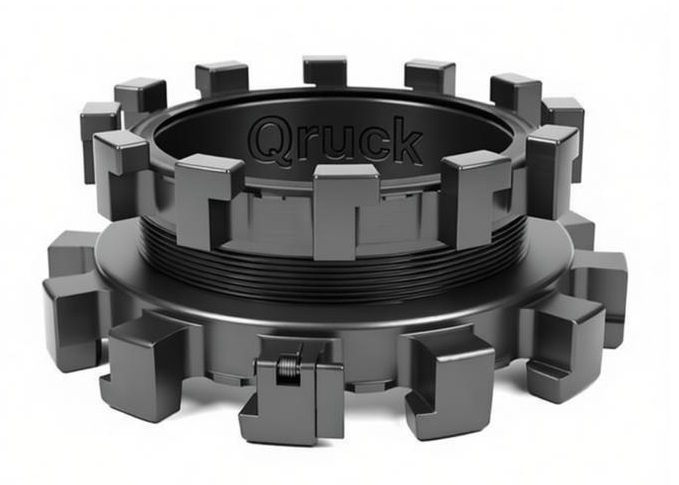

Multi-lug Reducer

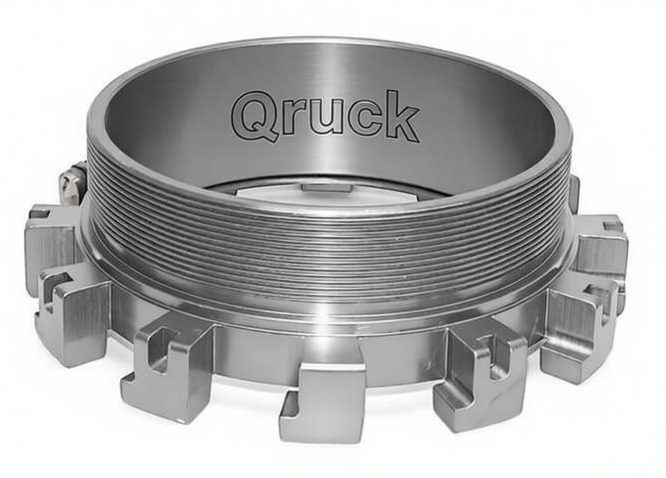

Multi-lug Male Adapter

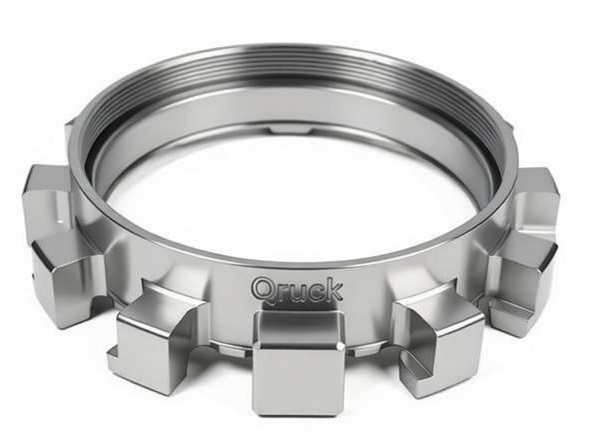

Multi-lug Female Adapter

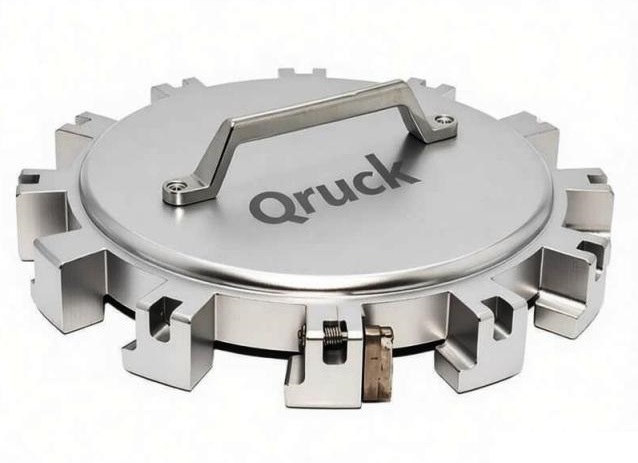

Multi-lug Blank Cap
What production process is used to produce VIC Grooved Hose Coupling in this factory Qruck?

Attribute	Multi-Lug Hose Coupling	Grooved Flange Hose Coupling
Structure	Consists of a housing (two halves), a rubber gasket, and bolts/nuts. Pipe ends require a rolled or cut groove	Consists of two flanges (welded or threaded onto pipe ends), a gasket, and a series of nuts and bolts
Locking Mechanism	Lugs or housing clamps over the pipe groove.	Bolts passing through flange holes.
Installation Time	Very Fast (Often 50-75% faster than flanges)	Slow (Aligning holes, tightening cross-pattern torque).
Flexibility	High (Allows for angular deflection and axial movement; absorbs vibration)	Low (Rigid connection; offers little to no movement).
Corrosion Resistance	Good (Available in Aluminum/Stainless)	Good (Available in Aluminum/Stainless)
Pressure Handling	Medium to High (Suitable for most fire systems, e.g., 2 MPa - 4 MPa)	High (Superior for very high pressure and temperature systems 4 MPa - 6 MPa)
Best Use Case	Large diameter fire mains, seismic zones, tight spaces	Pump connections, high temp systems, industrial steam/water

How to choose Multi-lug Hose Coupling and Grooved Flange Hose Coupling?

Choose Multi Coupling (Grooved/Lug) when you need speed, flexibility (to handle vibration or seismic movement), and light weight. It is the standard for modern fire protection systems (NFPA 13/14) because it is easy to retrofit and install in tight spaces. Choose Flange Coupling when you have extremely high pressure, large diameters, or when the connection point requires a rigid, heavy-duty anchor point, such as fire pump discharge. However, it is significantly heavier, slower to install, and costs more.
