Aluminum Forging Multi-lug / Mulit-Tooth Large Hose Coupling Reducer

Main Description

• Qruck’s Multi-lug LDHC couplings, reducers and male adapters supply higher pressure bearing capacity and safety. The "multi lug" design can distribute the locking force of the clamp more evenly, resulting in stronger clamping force. This enables it to withstand higher pipeline working pressure, and the anti vibration and anti impact capabilities at the connection are significantly improved. That makes the connection between large hose and pump, valve, water divider, water collector & other equipments, more stable and reliable.

  Our Multi-lug reducing couplings achieve fast, reliable, and tool free gender free connections between different diameters at both ends for hose, pump, valve and other equipments. And the follow both types of large Multi-lug Reducer are available to our production.

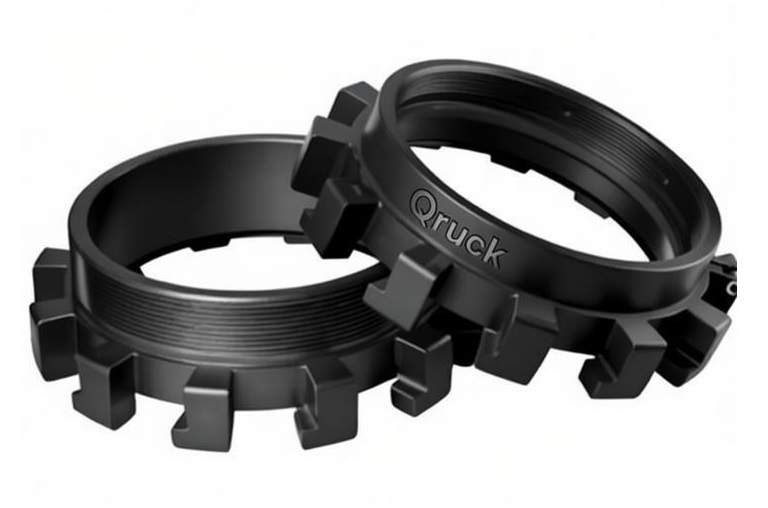

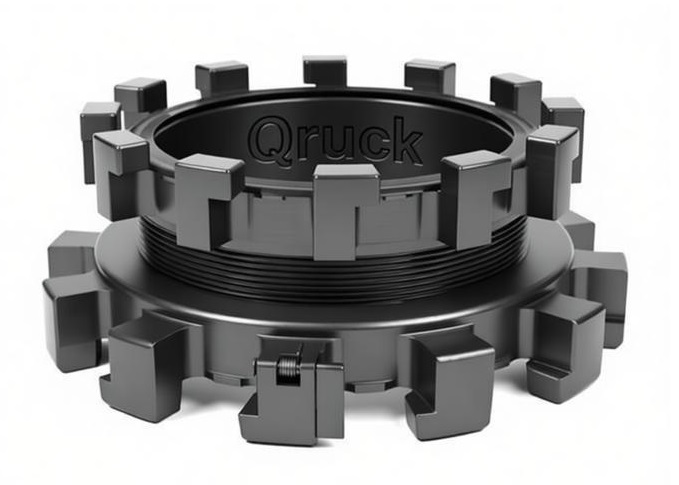

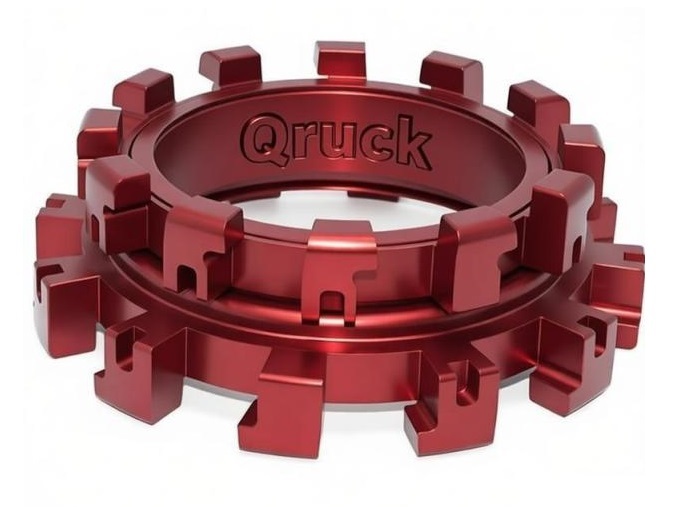

  - Aluminum forging Multi-lug Large Hose Coupling Reducer

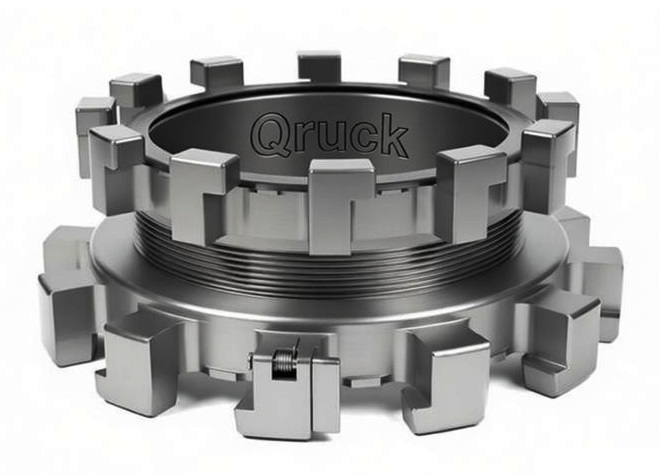

  - Stainless Steel SS304/SS316 Multi-tooth Large Hose Coupling Reducer



  Our Multi-lug couplings and adapters are particularly suitable for larger large bore layflat hose. When the layflat hose diameter is large or extreme conditions such as water hammer need to be treated, standard two bolt clamps may not provide sufficient sealing force. At this point, heavy-duty clamps with multiple lugs are a necessary choice as they can ensure long-term sealing of large pipeline systems under high pressure.
