QK-ALGC-RD
Features
· Product Item: QK-ALGC-RD01
· Materials: Aluminium A356-T6, Aluminium 6061-T6, Stainless Steel SS304/316, Brass C26000
· Surface Treatment: Black Anodic Oxidation, Passivation
· Sealing Material: NBR , EPDM, FPM, PTFE
· Casting Method: Casting, Forging, CNC Machining
. Standard: French - NF
. Pressure: 1.00 MPA

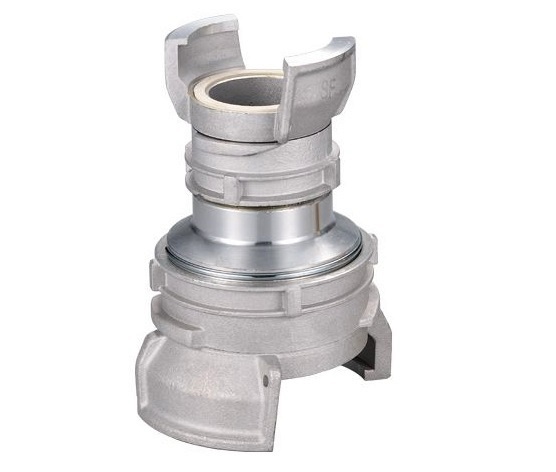

The french reducer coupling is in a large variety of applications. Its success is mostly because of the form, which enables perfect and easy closure. De symmetrical half couplings are tightened by turning the locking ring a quarter when it grips behind the lugs. The ensure even more tightness a wrench can be used to turn the locking ring even further.
On fixed installations often is chosen for a half coupling whithout a locking ring, seen only one locking ring is needed to tighten 2 couplings together.In some cases it is hard to couple a hose. In such a situation there can be chosen for a French coupling with a locking ring, but without the lugs.
| DN | SIZE | PART# |
|---|---|---|
| 50 X 40 | 2" X 1 1/2" | HT - GUL038 - AL |
| 65 X 40 | 2 1/2" X 1 1/2" | HT - GUL039 - AL |
| 65 X 50 | 2 1/2" X 2" | HT - GUL040 - AL |
| 80 X 40 | 3" X 1 1/2" | HT - GUL041 - AL |
| 80 X 50 | 3" X 2" | HT - GUL042 - AL |
| 80 X 65 | 3" X 2 1/2" | HT - GUL043 - AL |
| 100 X 40 | 4" X 1 1/2" | HT - GUL044 - AL |
| 100 X 50 | 4" X 2" | HT - GUL045 - AL |
| 100 X 65 | 4" X 2 1/2" | HT - GUL046 - AL |
| 100 X 80 | 4" X 3" | HT - GUL047 - AL |
