Storz Coupling Female Adapter

Home / Fire Hose Coupling / German Storz Coupling / Storz Coupling Female Adapter

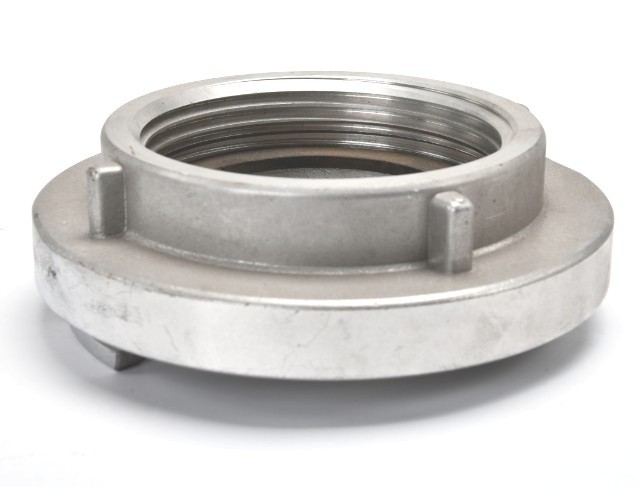

  • storz-female-connector.jpg

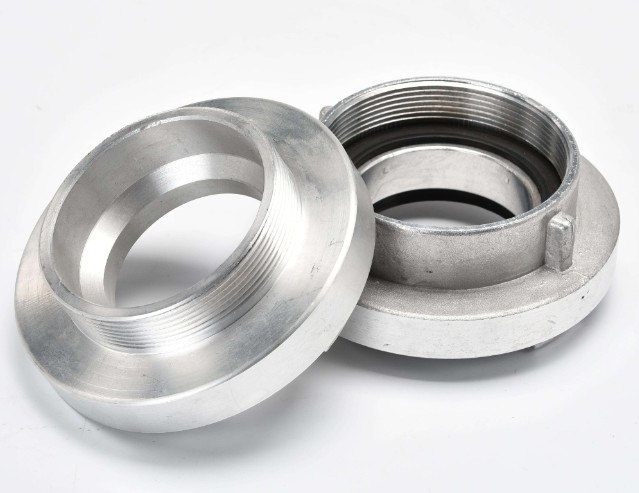

  • fire-hose-female-adapter-storz.jpg

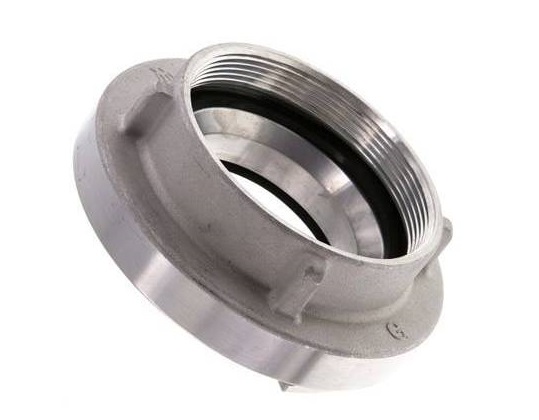

  • storz-converter-female-end.jpg

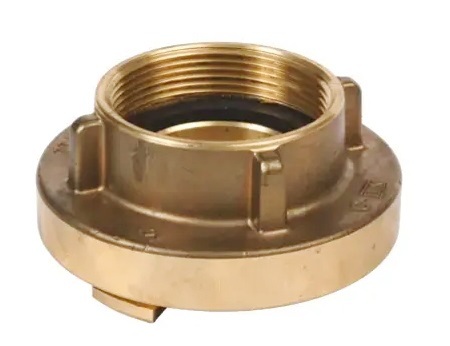

  • quick-connect-female-adapter.jpg
Product Model:

QK-ALSC-INT

Storz Coupling Female Adapter

  • Features

    ·  Product Item: QK-ALSC-INT01

    ·  Materials: Aluminium A356-T6, 6061-T6, Steel SS304/316, Brass C26000

    ·  Surface Treatment: Black Anodic Oxidation, Passivation

    ·  Sealing Material: NBR , EPDM, FPM, PTFE

    ·  Casting Method: Casting, Forging, CNC Machining

    .  Standard: DIN 14334:2020‌, DIN 14333, DIN 14330

    .  Pressure: 1.00 MPA - 2.50 MPA​

FOB Reference Price:

Main Description

  • Storz Thread Coupling Internal Thread is a type of threaded coupling that can be used for various pipes and accessories in the field of plumbing and heating. It has a smooth Internal  thread surface finish, accurate diameter and concentricity, and a certain anti-corrosion and anti-seizure performance. In addition, it can be used with various types of male threaded connectors to expand its application scope.

Specifications

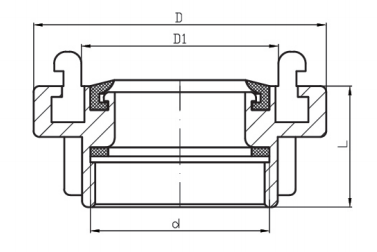

  • Size

    Code

    D1

    D

    L

    d

    Specs

    Code

    Φ31

    Φ55

    31

    G1″

    1″

    QK-ALSC-INT01

    Φ52

    Φ79

    31

    G1½”

    1½”

    QK-ALSC-INT02

    Φ59

    Φ88

    36

    G1¾”

    1¾”

    QK-ALSC-INT03

    Φ66

    Φ98

    40.5

    G2″

    2″

    QK-ALSC-INT04

    Φ81

    Φ118

    40

    G2½”

    2½”

    QK-ALSC-INTC05

    Φ89

    Φ126

    42.5

    G3″

    3″

    QK-ALSC-INT06

    Φ115

    Φ156

    47

    G4″

    SMALL4″

    QK-ALSC-INT07

    Φ133

    Φ182

    47.7

    G4″

    BIG4″

    QK-ALSC-INT08

    Φ148

    Φ196

    51.7

    G5″

    5″

    QK-ALSC-INT09

    Φ160

    Φ215

    60

    G6″

    6″

    QK-ALSC-INT10
