Light Storz Self-Locking Coupling

Home / Fire Hose Coupling / German Storz Self-Locking Coupling / Light Storz Self-Locking Coupling
  • lightweight-storz-safety-lock.jpg
  • light-duty-storz-connector.jpg
  • lightweight-quick-connect-storz.jpg
  • portable-storz-coupling.jpg
  • aluminium-self-locking-storz.jpg
  • lockable-symmetrical-coupling.jpg
Product Model:

QK-ALSC-LTSL

Light Storz Self-Locking Coupling

  • Features

    ·  Product Item: QK-ALSC-LTSL01

    ·  Materials: Aluminium A356-T6, 6061-T6, Steel SS304/316, Brass C26000

    ·  Surface Treatment: Black Anodic Oxidation, Passivation

    ·  Sealing Material: NBR , EPDM, FPM, PTFE

    ·  Casting Method: Casting, Forging, CNC Machining

    .  Standard: DIN 14334:2020‌, DIN 14333, DIN 14330

    .  Pressure: 1.00 MPA - 2.50 MPA​

FOB Reference Price:

Main Description

  • The Storz self-locking coupling, also known simply as a Storz coupling, is a type of hose coupling that offers a quick and secure method for connecting hoses and pipes of similar or varying diameters without threading, bolts, or clamps. This coupling was invented by Carl August Guido Storz in 1882 and has become a standard, especially in firefighting and industrial applications, due to its simplicity and effectiveness.

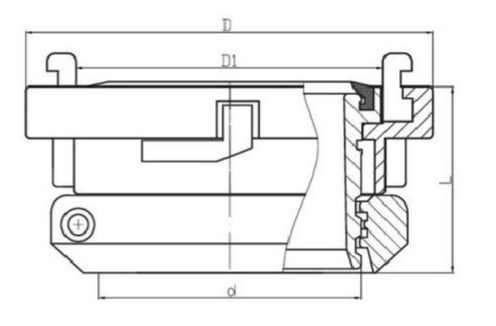

Specifications

  • SIZE

    d

    D

    D1

    L

    1″

    G1″

    55

    45

    38

    1.5″

    G1.5″

    78

    68

    41

    2″

    G2″

    98

    84

    48.5

    2-1/2″

    G2.5″

    118

    103

    52

    3″

    G3″

    125

    111

    55

    Internal Thread 4″
    ( Small Size)

    G4″

    156

    139

    60.5

    External Thread 4 ”
    ( Small Size)

    G4″

    156

    139

    59

    4″

    ( Normal Size)

    G4″

    180

    161

    62
