Aluminum Forging US Large Diameter Lay-flat Hose Victaulic Grooved Coupling Shank

Main Description

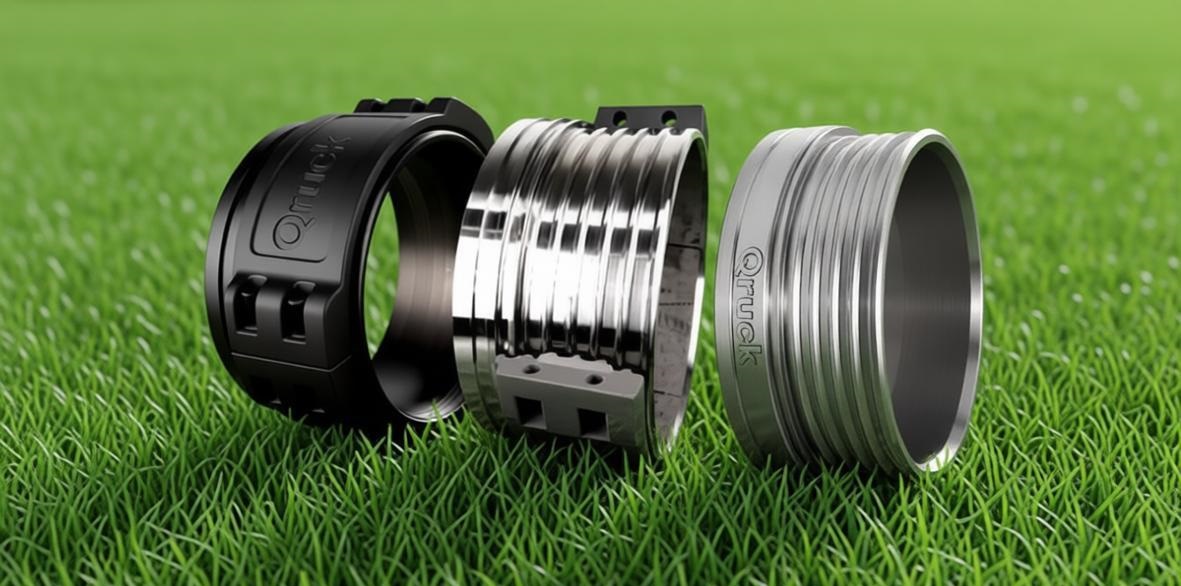

• Qruck’s Large Diameter Lay-Flat Hose Victaulic Grooved Coupling consists of grooved hose shanks, segmented bindings, sleeves, rubber seals and connection clips with screws & Nuts. And the follow both types of large coupling are available to our production. LDHC Hose Shank is the main component for the whole couplings

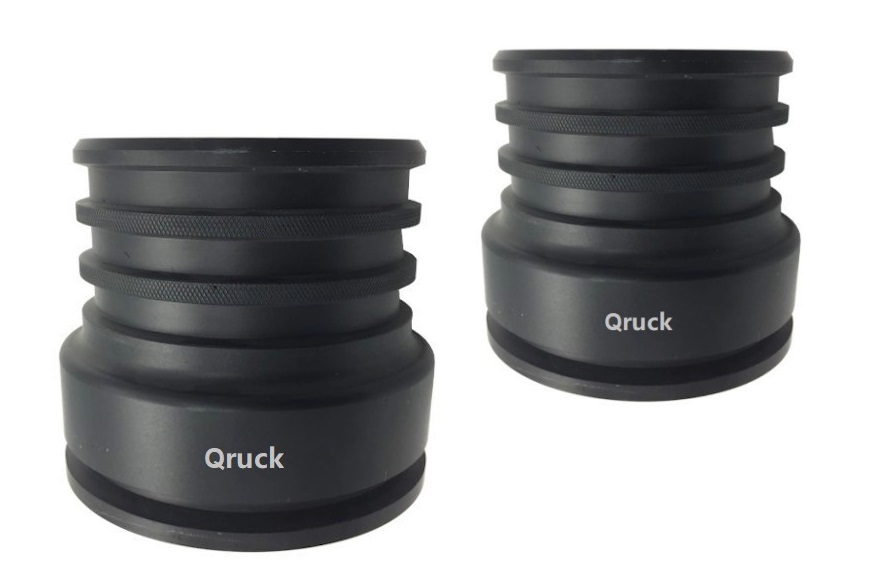

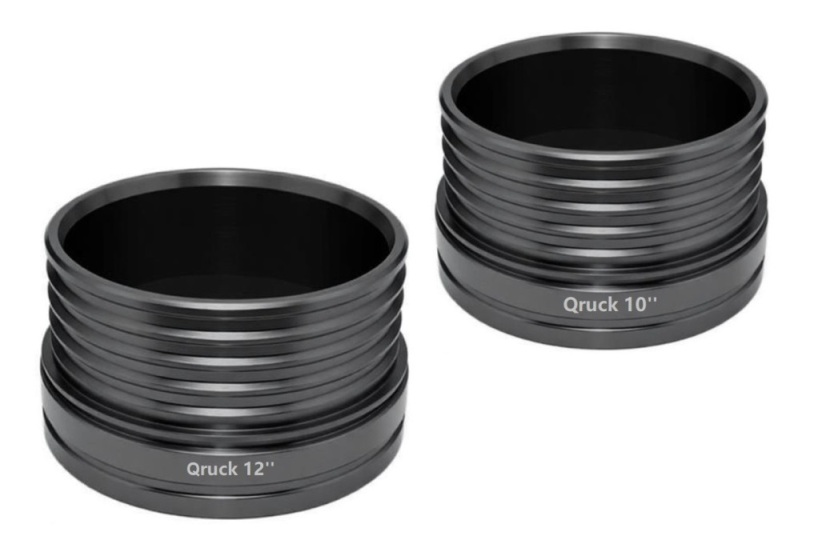

  - Aluminum Forging Large Diameter Lay-flat Hose Victaulic Grooved Hose Shank/Tail/End/Nipple

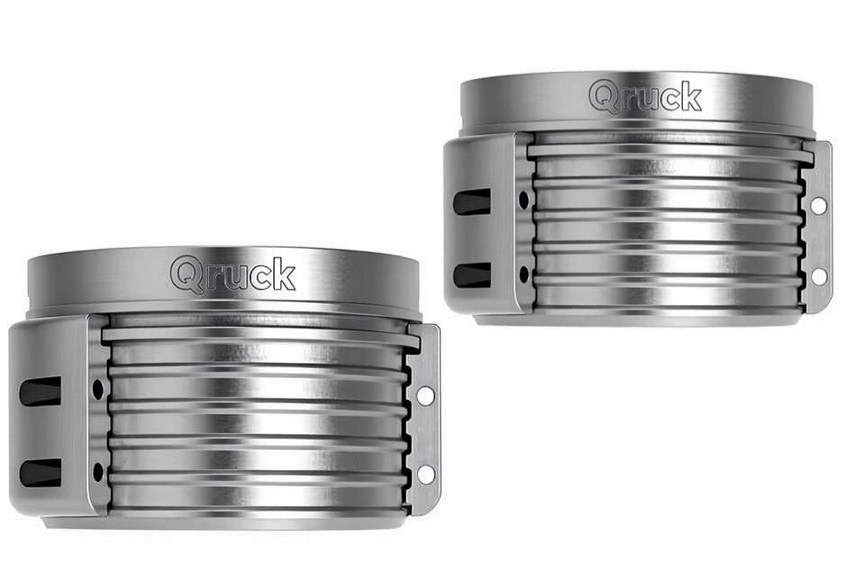

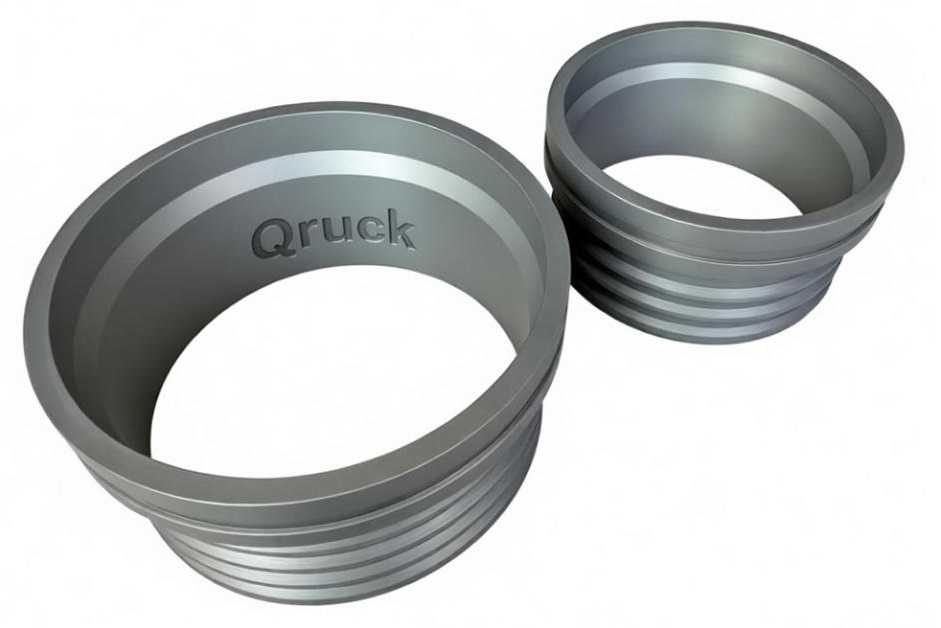

  - Stainless Steel SS304/SS316 Large Bore Lay-flat Hose Victaulic Grooved Hose Shank/Tail/End/Nipple



•

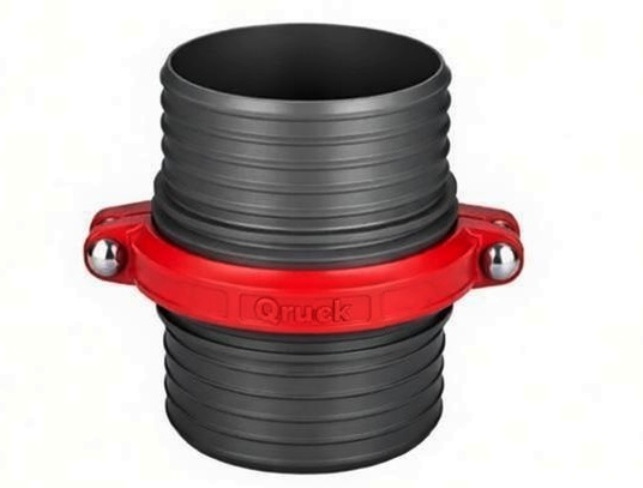

• Qruck’s LDHC Grooved hose Coupling represents a specialized integration of Victaulic's world-renowned groove mechanical piping technology with large-diameter, collapsible lay-flat hoses. Designed for high-flow fluid transfer in demanding environments, these couplings provide a fast, secure, and reliable method for connecting hoses used in dewatering, mining, irrigation, and emergency response. Rather than using traditional band clamps or bolted flanges, this system utilizes a housing that engages with a groove on the hose stem fitting, creating a rigid, leak-tight seal that can be assembled or disassembled in minutes with standard tools.

  - The Vic grooved design for shank and binding can hold the hose tightly in place during liquid transfer and connection. The bindings bite into the hose to secure it.

  - The high performance rubber seals offer good and long sealing during liquid transfer and connection.

  - The segmented binding offers quick on-site installation and connection between equipments and hoses.

  - The high strength Aluminum with forging process offer reliable working pressure.

  - 12.9 high grade screws with nuts offers safety and tight locking work.

  - The hard anodizing offers high wear resistance and long durability.
