En 14420 / DIN2817 Brass LNC Male Female Coupling with Safety Shell Clamp for Rigid Reinforced Pressure Rubber Hose

Main Description

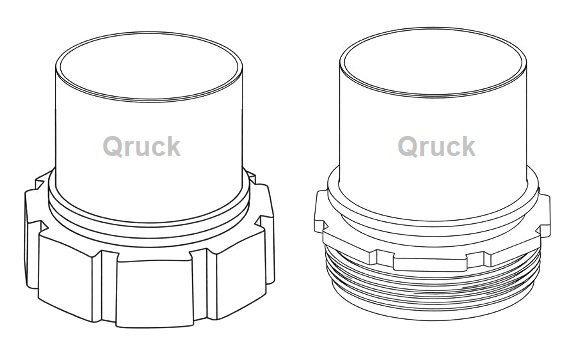

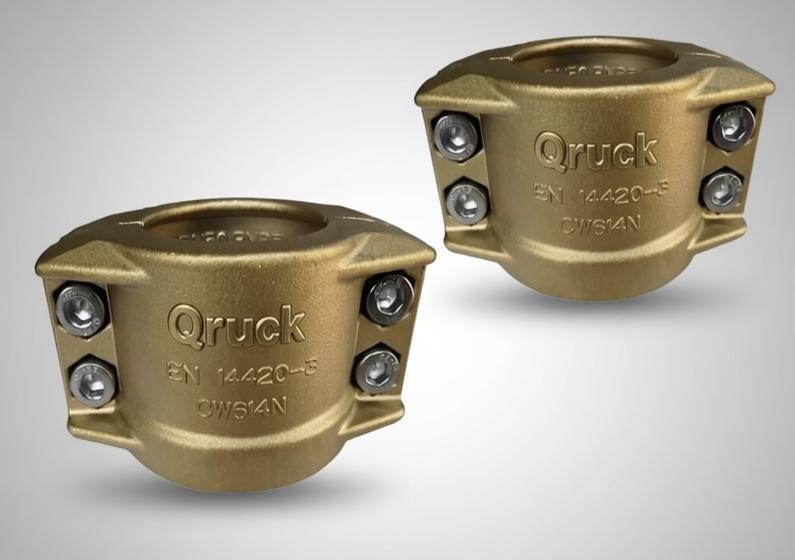

• Qruck supplies external BSP/NPT coupling-GA and hexagon swivel female BSP coupling-GI. Both LNC GI and GA can be assembled with hoses by DIN EN14420-3 safety clamps. DIN2817 Smooth Tail Fittings are offered with a smooth hosetail is used for hoses with harder XLPE or UHMWPE linings. The smooth hosetail ensures the hose liner will not be punctured or crack when the coupling is tightened. And it is required to be used in conjunction with a suitable interlocking DIN 2817 (EN ISO 14420) safety clamp to ensure a safe and leakproof assembly. The safety collar makes these couplings suitable for safety clamp assembly. This is extremely suitable for situations where a strong connection is required. This way of connecting is a lot stronger than, for example, with assembly with hose clamps.

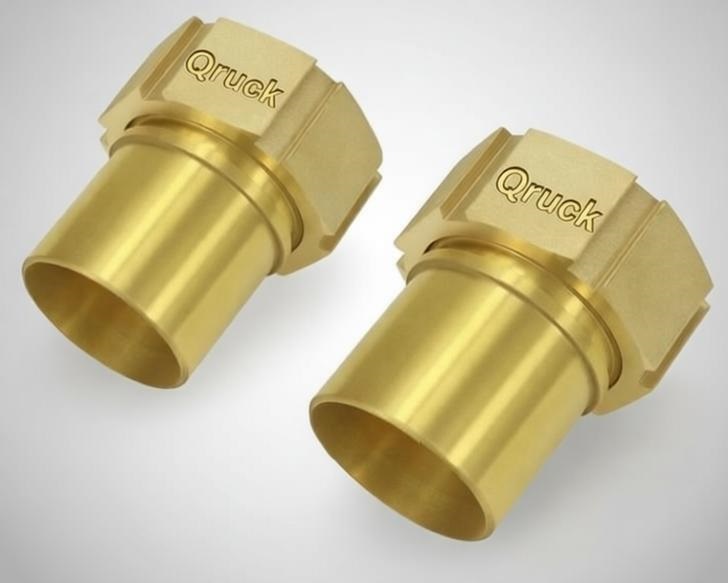

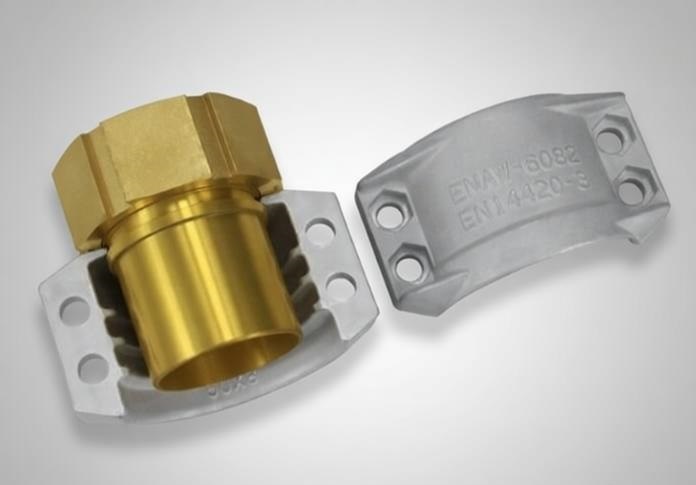

  - DIN2817 Brass LNC BSP Female Coupling with Smooth Hosetail

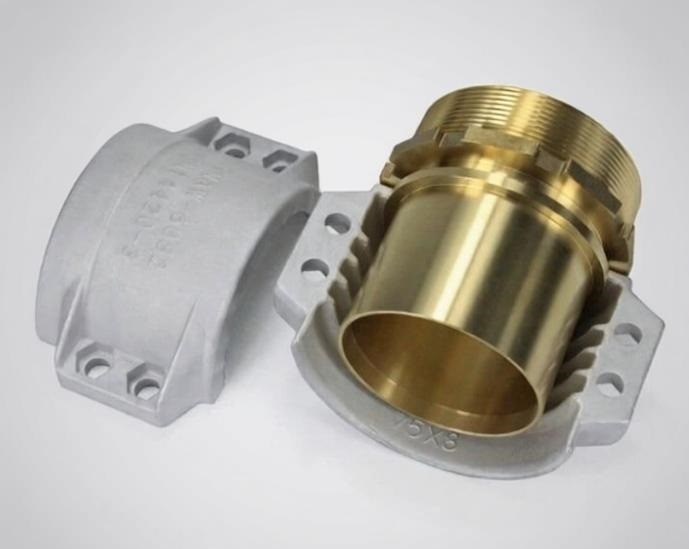

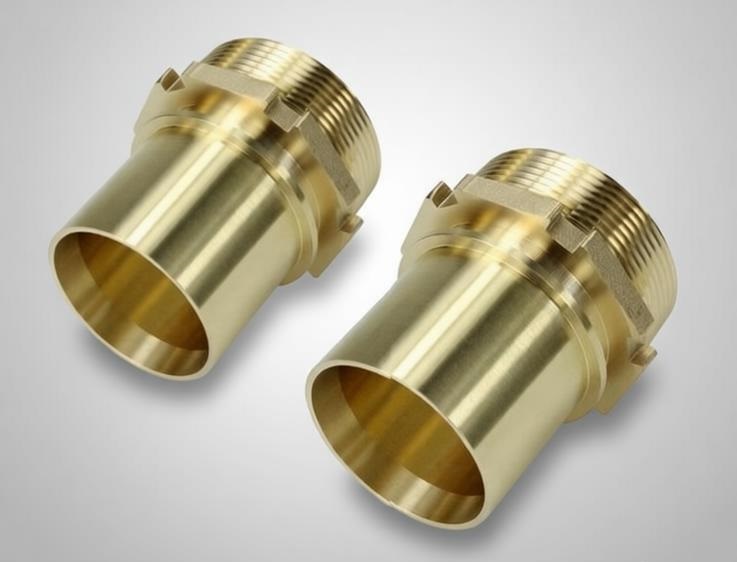

  - En 14420 Brass LNC NPT Male Coupling with Serrated Hosetail

  - TW Brass Smooth Hosetail BSP Male Female with Safety Collar



  Qruck’s BSP or NPT threaded Smooth Hosetail Coupling or Serrated Hosetail Coupling is a versatile solution for secure and reliable hose connections in demanding industrial environments. Designed and produced for installation on Rigid Reinforced Rubber Hose as well as selected industrial Soft Layflat Hose, it ensures compatibility with a wide range of media, including chemical products, petrochemical products, and liquefied gases. Regarding applications involving highly aggressive chemicals, our couplings can be equipped with advanced PTFE/FPM lining, providing maximum resistance and safety. The assembly is carried out using shell clamps compliant with EN 14420-3 / DIN 2817 standards or by crimping with dedicated sleeves, offering flexibility and durability in actual application. At a working pressure of up to 32 bar, our couplings are made in brass (MS), stainless steel 316 (SS), or galvanized steel (ST), ensuring optimal performance across different operating conditions. Sealing is achieved with a flat gasket, using standard polyurethane or PTFE for stainless steel versions, guaranteeing leak-free operation. Designed to perform reliably within a temperature range of -20°C to +65°C in accordance with EN-14420, our coupling delivers robust functionality, long service life, and safety for critical industrial processes.
