Stainless Steel Mining Flexible Well Riser Hose Coupling with Thread BSP/ BSPT
Feathers:
- Item No.: QK-SS-WRHC-01
- Made in SS316 stainless steel with performance FKM rubber seals.
- Thread Spec: BSP, BSPT, NPT, NPSC
- Safety Clamp: Heavy Solid Clamp / Lightweight Ribbed Clamp
- High working pressure: 16 bar ~ 32 bar
- Wide working temperatures range: -18 to + 200 °C (0°F to 392 °F).
- Own excellent corrosion resistance, and handle a wide array of liquids.
- Outstanding abrasion resistance
- Resistant to aging and ozone
- Offer secure connection by safety clamp
- Dimension Range: 1’’- 6’’
- Application: Dewatering Hose, Borehose, Riser Hose for Mining & Well-Line

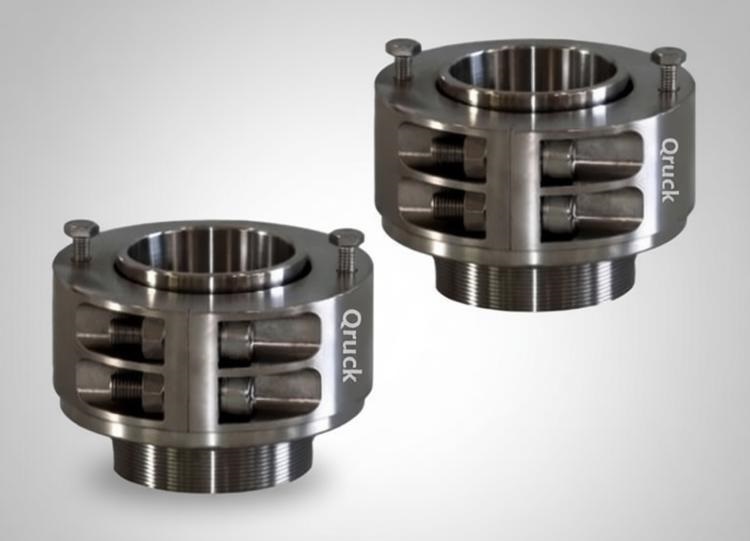

Qruck’s Mining Flexible Well Riser Hose Coupling with Safety Clamp is made in stainless steel with high strength. And it consists of stainless hose end and stainless safety heavy clamp. One end can connect hose by clamp, and the other end can contact pump by thread. So our couplings can work well under high pressure and provide safe and reliable connections.

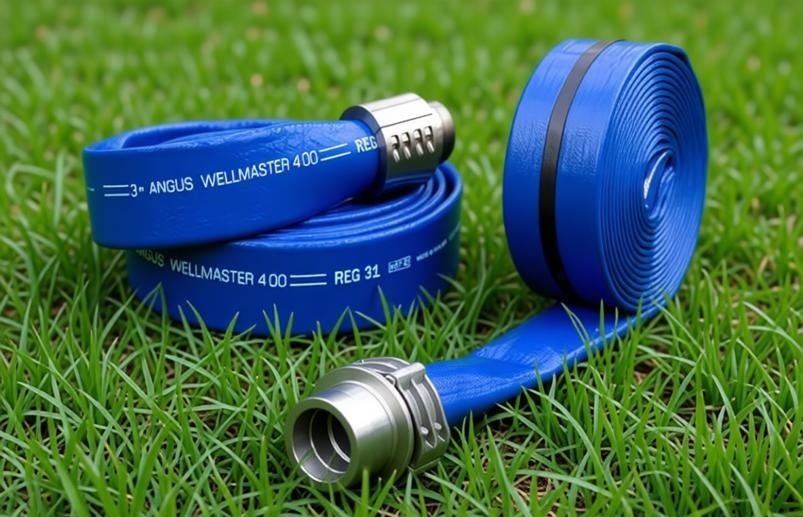

Qruck’s coupling is suitable to well flexible hose riser, which is designed for use with electric submersible pumps for all types of ground water borehole extraction & well monitoring operations. And our layflat rising hose couplings are available to WM150 – WM250 – WM400 in a wide range of diameters (32mm – 208mm) to cover all possible pressure needs & performance ranges.

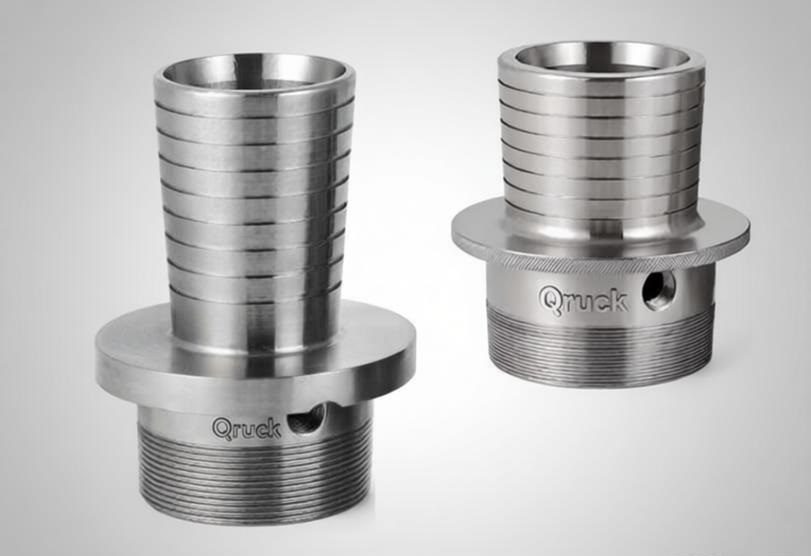

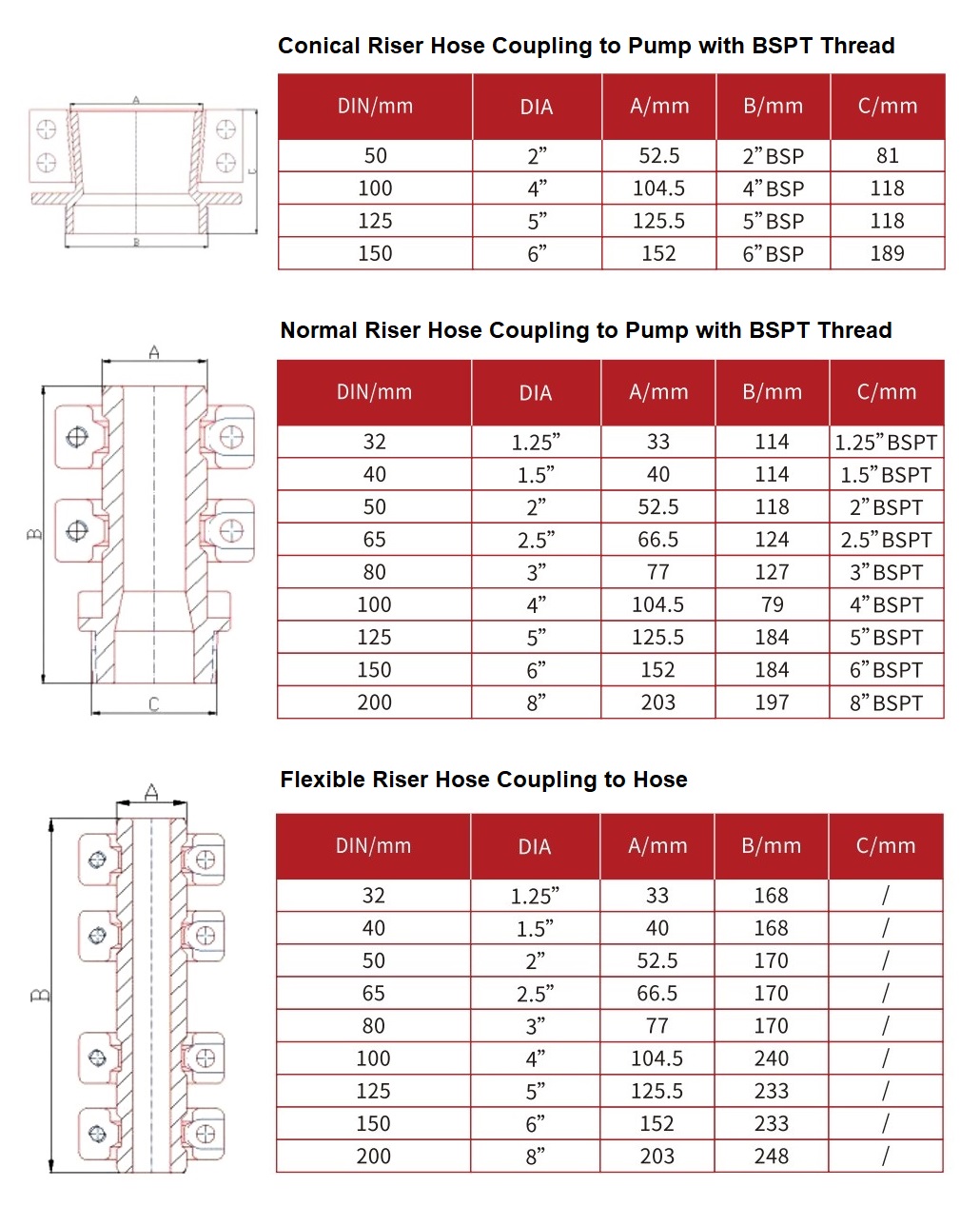

- Conical Mining Well Riser Hose Coupling to Pump with BSPT Thread

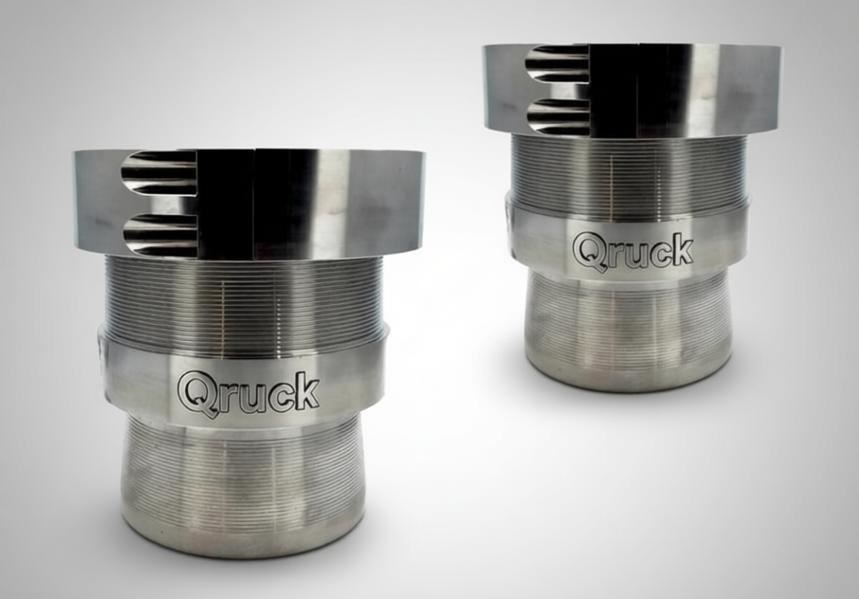

- Normal Mining Well Riser Hose Coupling to Pump with BSPT Thread

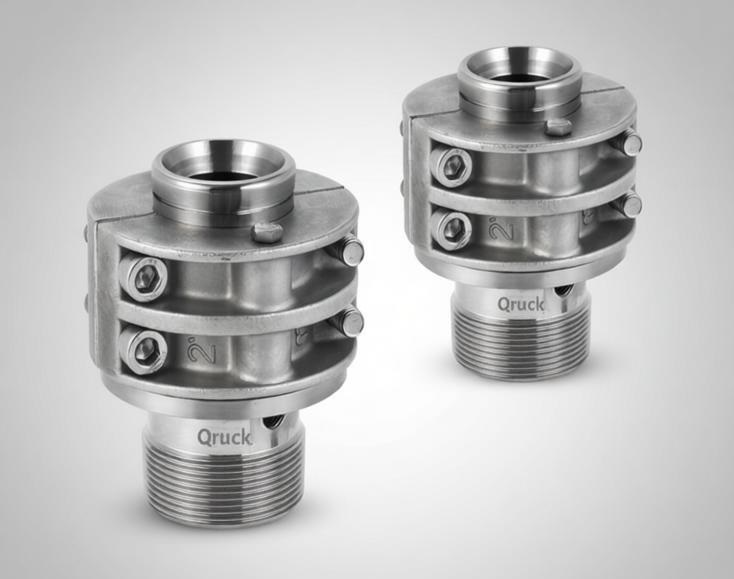

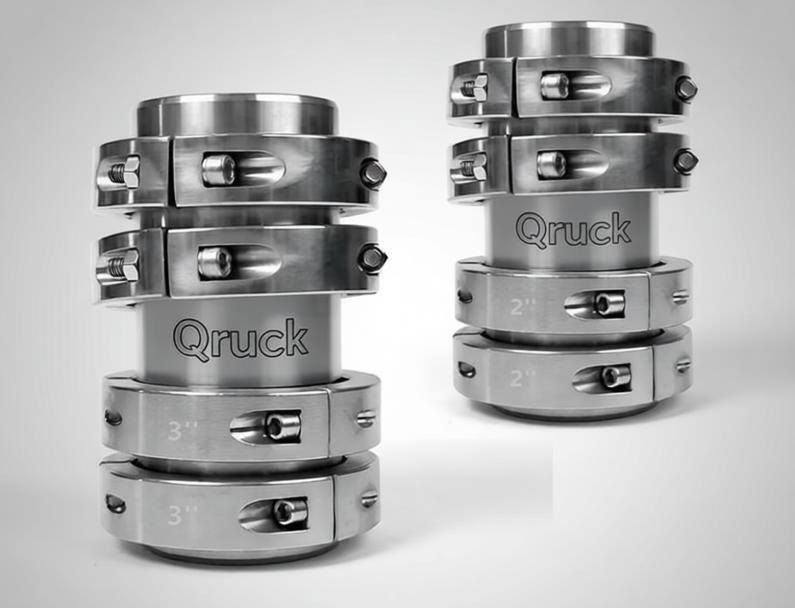

- Flexible Mining Well Riser Hose Coupling to Hose with NPT, NPSC Thread
