- Specifications
QK-BSNOC-HS
Features
· Product Item: QK-BSNOC-HS01
· Materials: Aluminium A356-T6, Aluminium 6061-T6, Stainless Steel SS304/316, Brass C26000
· Surface Treatment: Black Anodic Oxidation, Passivation
· Sealing Material: NBR , EPDM, FPM, PTFE
· Casting Method: Casting, Forging, CNC Machining
. Standard: DIN 14811, NF S61-112
. Pressure: 1.50 MPA - 5.00 MPA
Norwegian Type fire hose coupling is a rigid interlocking end-piece on fire hose, it is used for connectiong hose to hydrants or fire engine pumps and other hose appliances such as nozzles, wyes, ect. One of the primary applications of Norwegian Nor type fire hose coupling
is in firefighting operations. Firefighters use this type of coupling to connect two fire hoses together, allowing them to extend the reach of their hoses and increase the amount of water they can deliver to a fire. This is particularly useful in large fires where a single hose may not be enough to extinguish the flames. By connecting two or more hoses together, firefighters can deliver a larger volume of water to the fire, which can help to extinguish the flames more quickly. Norwegian Nor type fire hose coupling is also used in marine firefighting operations. Ships and other vessels are at risk of fires, and it is essential to have the right equipment on board to deal with these emergencies. Norwegian Nor type fire hose coupling is used to connect fire hoses to the ship's water supply, allowing firefighters to quickly and easily access water to extinguish any fires that may occur on board. This is particularly important in the case of oil tankers and other vessels carrying flammable materials, where a fire could quickly become a major disaster.
CODE | LUG DIS | HOSE DIA | THREAD | AL W/T | BS W/T |
NOF50/25 | 50 | 25 | G1'' |
|
|
NOF50/32 | 50 | 32 | G1 1/4'' | 0.150 | 0.450 |
NOF50/38 | 50 | 38 | G1 1/2'' | 0.200 | 0.600 |
NOF50/50 | 50 | 42 | G2'' |
|
|
NOF66/38 | 66 | 32 | G1 1/2'' |
|
|
NOF66/50 | 66 | 38 | G2'' |
| 1.200 |
NOF83/25 | 83 | 51 | G1'' | 0.530 |
|
NOF83/38 | 83 | 38 | G1 1/2'' | 0.570 | 1.600 |
NOF83/50 | 83 | 51 | G2'' | 0.580 | 1.840 |
NOF83/65 | 83 | 65 | G2 1/2'' | 0.600 | 1.850 |
NOF83/75 | 83 | 75 | G3'' | 0.760 | 2.100 |

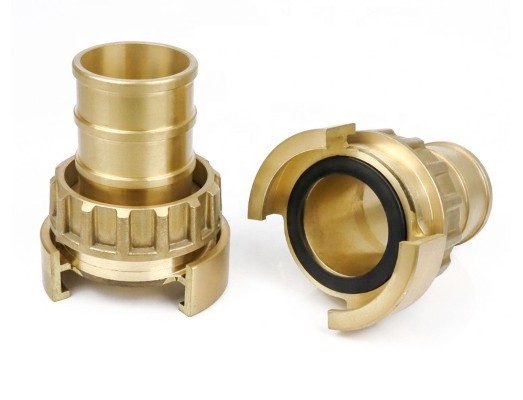

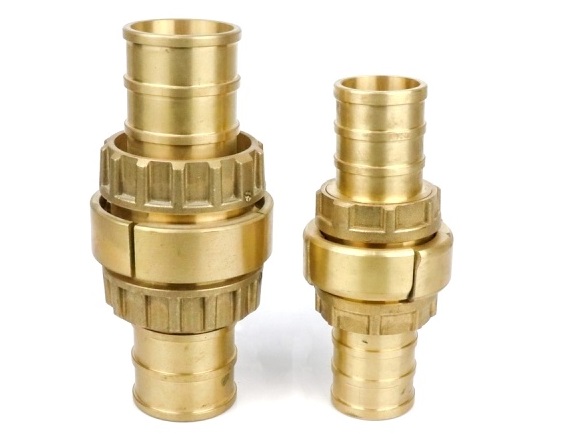

Norwegian NOR Fire Hose Coupling With Hose Shank
Reliable and Durable Coupling Produced by Qruck, a certified factory
