The high-pressure fire hose coupling is a critical connection component in firefighting water supply systems, and its performance directly affects the success or failure of firefighting and rescue operations. Especially in high-rise buildings or long-distance water supply scenarios, where supply pressure is high and pressure fluctuations are significant, ordinary couplings are highly prone to disengagement, leakage, or even bursting. Therefore, dedicated high-pressure couplings have higher requirements in terms of materials, structure, and manufacturing processes.

Necessity

The necessity of high-pressure hose couplings stems from the harshness of their application scenarios. In high-rise building firefighting, firefighters need to deliver water or foam concentrate to heights of dozens or even hundreds of meters through vertically laid hoses. At this point, the pressure inside the hose is far higher than in ordinary low-rise water supply scenarios.

Ordinary aluminum alloy couplings with conventional snap-lock connections lack sufficient pressure-bearing capacity under high pressure or sudden pressure changes, and are highly prone to disengagement or damage, leading to water supply interruption and delaying firefighting efforts. In addition, high-rise water supply often requires multiple hose sections connected in series. The increased number of joints means a simultaneous increase in potential leak points and disengagement risks, imposing rigid requirements on the pressure resistance and connection reliability of every single coupling. High-pressure couplings are precisely the dedicated components designed to solve this pain point.

Materials

The material selection for high-pressure fire hose couplings directly determines their pressure ceiling and durability. Currently, the mainstream materials for high-pressure couplings include the following:

• Stainless steel – High strength and excellent resistance to high pressure and corrosion. Strength test pressure up to 10 MPa, hose disengagement tensile force of 14.5 MPa. Resistant to deformation under high pressure, suitable for extreme pressure-bearing scenarios.
• Aluminum-magnesium alloy (such as A6061) – Formed through forging, surface anodized. Nominal pressure typically 2.5 MPa, test pressure 4.0 MPa. Light weight for easy carrying and rapid operation, suitable for routine firefighting operations.
• Brass – Withstands pressures of 16 bar or more, wide operating temperature range (-40°C to 110°C). Commonly used to connect high-pressure fire hoses to firefighting equipment.

Product Structure

The core design goals of high-pressure fire hose coupling structures are anti-disengagement, sealing, and pressure resistance. Compared with traditional snap-lock couplings, high-pressure couplings have improvements in both connection method and sealing mechanism.

A typical high-pressure coupling adopts a clamp-type threaded locking structure. It consists of three parts: a left connector, a right connector, and a clamp. The end of the left connector is provided with a stop, and the end of the right connector has external threads. During installation, the clamp is fitted from the left connector side, and its annular retaining ring cooperates with the stop of the left connector to prevent disengagement. The right connector is then threaded into the clamp and tightened.

The sealing structure is equally critical. The end faces of the left and right connectors are each provided with sealing ring grooves containing water-swellable sealing rings. When these sealing rings come into contact with water or foam concentrate, they expand in volume, filling the tiny gaps between the coupling end faces and forming a reliable sealing barrier.

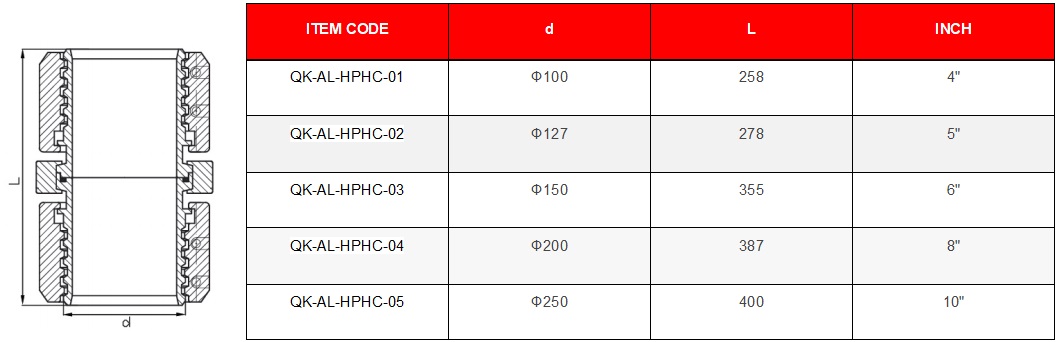

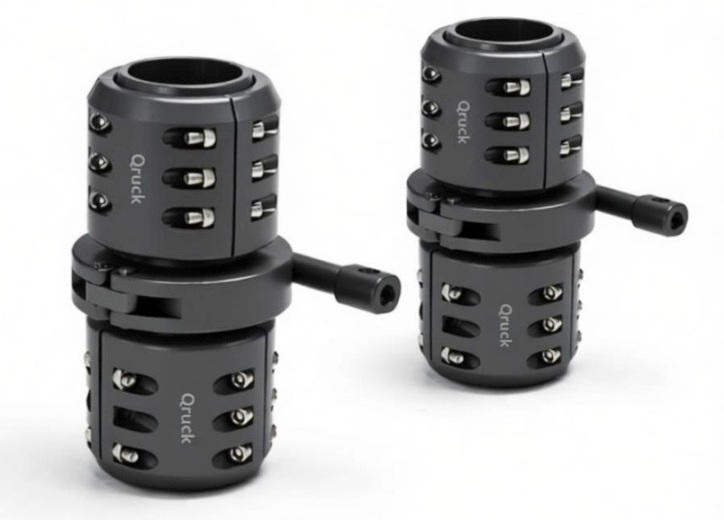

Product Gallery

Manufacturing Process

The manufacturing process for high-pressure fire hose couplings has evolved from casting to forging, with the core difference lying in material density and mechanical properties.

Traditional casting processes are lower in cost, but castings are prone to defects such as porosity and shrinkage. Under high-pressure conditions, these internal defects can become crack initiation sites, causing the coupling to rupture at pressure peaks.

Precision forging is currently the mainstream manufacturing method. Forging causes the metal billet to undergo plastic deformation under high pressure, resulting in continuous and rational metal flow lines and a dense structure, capable of eliminating defects such as cast porosity and gas holes. Forged couplings have higher strength, better pressure resistance, and more precise dimensional accuracy.

Surface treatment is a necessary step after forging. Aluminum-magnesium alloy couplings are typically anodized, forming a dense oxide film on the surface that effectively prevents corrosion and water leakage and provides stable performance.

Advantages

• High pressure resistance and anti-disengagement – Threaded locking or reinforced clamp structures provide far higher pressure-bearing capacity and anti-disengagement tensile force than ordinary snap-lock couplings. Stainless steel high-pressure couplings can reach 14.5 MPa disengagement tensile force.
• Reliable sealing – Water-swellable sealing rings and multiple sealing structures ensure no leakage under high-pressure water flow impact and pressure fluctuations.
• Durability and corrosion resistance – Stainless steel or anodized aluminum-magnesium alloy materials resist corrosion from water and foam concentrate as well as wear from repeated assembly and disassembly.

Specific Applications

• High-rise building firefighting – Core application scenario, ensuring stable and reliable connection points in vertical water supply pipelines.
• Long-distance water supply – For forest fires or large industrial fires, multiple hose sections connected in series to deliver high-pressure water.
• High-pressure firefighting equipment connections – Connect high-pressure fire hoses to fire pumps, fire monitors, high-pressure water guns and other equipment.
• Complex turning conditions – Used with right-angle adapter devices to achieve zero-kink, zero-pressure-buildup water supply in stairwells and shafts.

Main Type

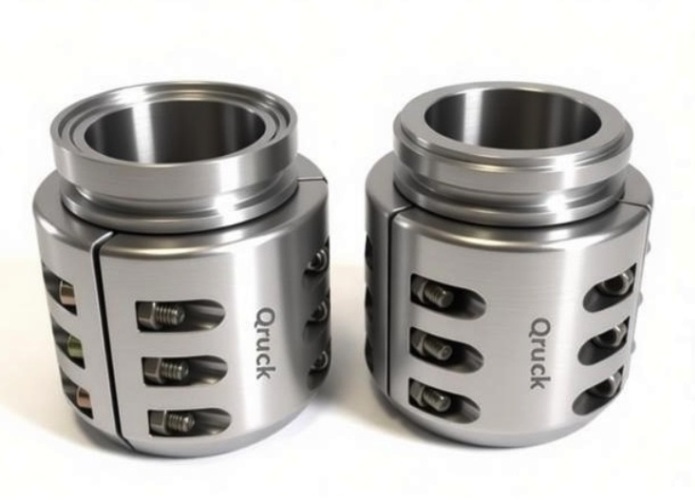

• Forging Aluminum High Pressure Lay-flat Hose Victaulic Grooved Coupling

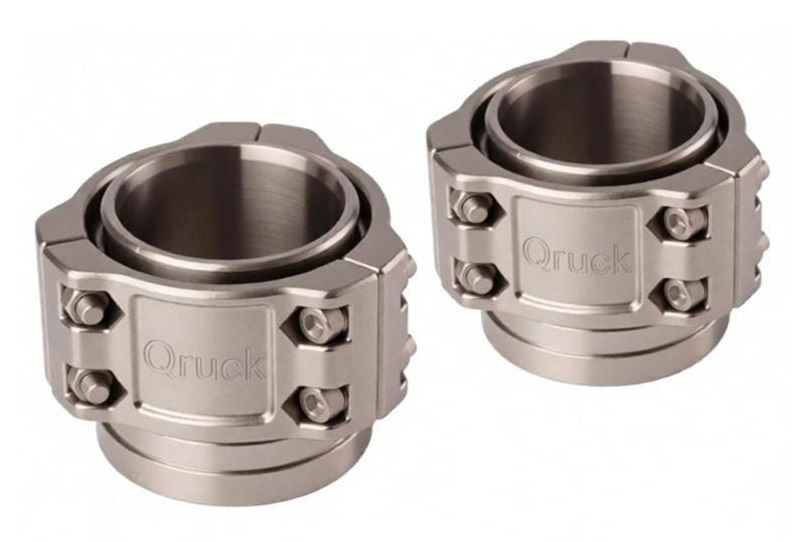

• Forging Stainless Steel High Pressure Lay-flat Hose Victaulic Grooved Coupling
• Forging Aluminum High Pressure Lay-flat Hose Storz Self-Locking Coupling
• Forging Stainless Steel High Pressure Lay-flat Hose Storz Self-Locking Coupling

Frequently Asked Questions

What pressure can high-pressure fire hose couplings withstand?

Stainless steel high-pressure couplings can reach 10 MPa test pressure and 14.5 MPa disengagement tensile force; aluminum-magnesium alloy types typically have 2.5 MPa nominal pressure and 4.0 MPa test pressure.

What materials are used for high-pressure couplings?

Mainstream materials include stainless steel (304), aluminum-magnesium alloy (A6061) and brass, selected based on pressure requirements and application scenarios.

Why is forging better than casting for high-pressure couplings?

Forging eliminates internal porosity and shrinkage defects, creates continuous metal flow lines, and provides higher strength, better pressure resistance and longer fatigue life under cyclic pressure.

What is the sealing principle of high-pressure couplings?

They use water-swellable sealing rings that expand when contacting water or foam, filling tiny gaps between end faces to form a reliable sealing barrier.

What are the main application scenarios?

High-rise building firefighting, long-distance water supply, high-pressure equipment connections and complex pipeline turning conditions.
