What is the best Aluminum production process for High Flow or High Pressure fire equipments, fire department connections, fire hose couplings and other fire fittings?

• There are different aluminum casting processes for fire equipments, fire department connections , fire hose couplings and other fire fittings. The strength, wear resistance, and service life of fire fittings produced in different aluminum production processes are different. It may even affect the connection safety of the fire equipments. Obviously, aluminum forging is the best choice.




  Let' check the Influence of Forging on the Performance Enhancement of Aluminum fire fittings:
  Forging is a manufacturing process that shapes metal using localized compressive forces. In the context of aluminum alloy fire fittings, forging represents a significant upgrade over traditional casting methods. By applying high pressure to a solid aluminum billet, the forging process fundamentally alters the material's internal structure, leading to a dramatic enhancement in mechanical performance. This report briefly analyzes how forging improves aluminum fire fittings and summarizes the key impacts on material properties.

•

• The Mechanism of Improvement: Grain Structure Refinement and Porosity Elimination



  Grain Refinement: During forging, the aluminum alloy is plastically deformed under high pressure. This process breaks down the coarse, dendrite grain structures inherited from the original cast billet. The result is a uniform and refined grain structure. Research has confirmed that multi-axial forging can produce ultra-fine grains, with studies reporting grain sizes as small as 100 to 400 nm in aluminum-lithium alloys. For fire fittings, a homogeneous grain size of 20–30 µm has been achieved, which directly contributes to higher strength.
  Porosity Healing and Densification: Cast aluminum is prone to microscopic air pockets and shrinkage porosity, which act as stress concentrators and initiation points for cracks. The forging process applies compressive stresses that effectively "heal" these voids. The high pressure closes micro porosity and creates a fully dense, wrought microstructure. This elimination of internal defects is the key reason why forged fire fittings are significantly stronger and more reliable than cast fire fittings...

• Property	Impact of Forging	Benefit to fire fittings
  Strength & Durability	Significantly increased; mechanical properties can be ~30% higher than cast alloys.	Higher load capacity and greater resistance to bending or cracking under high stress, ideal for performance driving.
  Weight	Reduced; forged fire fittings are approximately 20% lighter than cast fire fittings of equivalent size .	Lower unsprung mass, leading to faster acceleration, shorter braking distances.
  Fatigue Life	Substantially improved due to the absence of crack-initiating pores.	Longer-lasting fire fittings that can better withstand the repetitive stresses of driving, including vibrations and road impacts.
  Ductility	Enhanced; the refined, uniform grain structure allows for greater elongation before fracture.	Less brittle than cast fire fittings, allowing them to absorb impacts without catastrophic failure. Elongation of up to 10% has been reported.
  Thermal Performance	Improved heat dissipation due to the dense, forged structure.	More effective cooling of brake system components, reducing brake fade during aggressive driving.

•

•


  3. Aluminum Low-Pressure Casting

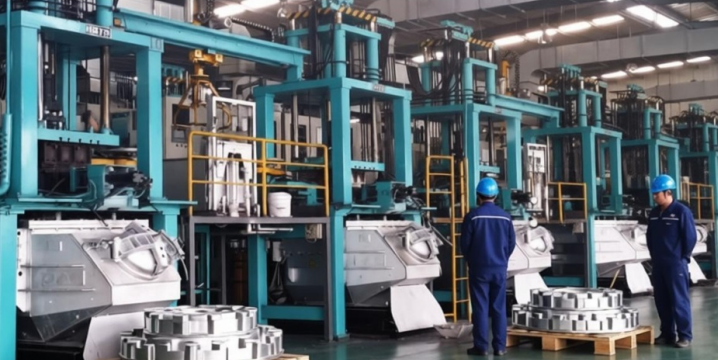

  Low-pressure casting uses a controlled, low-pressure gas to push molten metal from a lower holding furnace upward into the mold cavity, ensuring a smooth and progressive filling process.

  • Advantages: Extremely low porosity and excellent grain density; fully heat-treatable to achieve significantly enhanced strength; provides vastly superior mechanical properties compared to standard gravity casting; highly optimized for medium to high-volume production.
  • Disadvantages: Slower cycle times compared to high-pressure die casting (HPDC); higher tooling costs than simple gravity casting; requires thicker minimum wall sections.

  Qruck Strategic Focus: At Qruck, we put a clear and dedicated focus on advanced production using the low-pressure casting for fire equipments . Following this meticulous casting process, we always arrange precision CNC machining for all the critical connecting dimensions. This extra layer of control guarantees flawlessly smooth fitting work and precise thread mating in real-world scenarios.

•

• VIC Grooved Hose Coupling

•


  4. Aluminum Heavy Forging

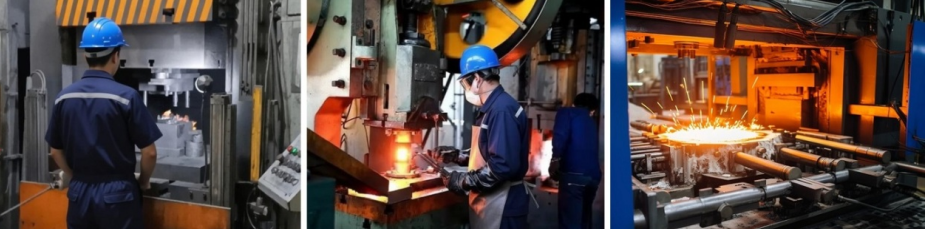

  Forging subjects solid or pre-formed aluminum alloys to localized compressive forces under immense tonnage, realigning the grain flow structure of the metal along the contours of the part.

  • Advantages: Achieves the highest mechanical strength and densest microstructure possible; delivers excellent impact resistance and unmatched pressure ratings; exceptionally reliable for heavy-duty fire hose couplings ; completely eliminates any internal porosity issues.
  • Disadvantages: The absolute highest tooling, die, and machinery equipment costs; lower production output rate compared to HPDC; requires mandatory comprehensive secondary machining for structural threads and fine design details.

  Qruck Strategic Focus: At Qruck, we also place a major focus on production via the high-strength aluminum forged fire couplings process. After completing our high-precision heavy forging process, we always arrange specialized CNC machining for all connecting dimensions, which ensures perfectly smooth fitting work and airtight structural sealing under pressure.

• Let’s make a simple comparison of different production processes below.

• Property / Aspect	ACD12 (High Pressure Casting)	A356 (Low Pressure Casting)	6061-T6 (Forging)
  Typical tensile strength	~230–320 MPa	~240–310 MPa (after T6)	~310 MPa (min), typical ~310–345 MPa
  Yield strength (0.2%)	~160–220 MPa	~160–220 MPa (after T6)	~270–280 MPa
  Elongation (ductility)	Low: ~1–3%	Moderate: ~5–10% (after T6)	High: ~10–17%
  Hardness (HB)	~80–95 HB	~70–90 HB (after T6)	~95–105 HB
  Porosity	Higher (gas or shrinkage porosity common)	Low (controlled filling, less turbulence)	Almost none (wrought structure)
  Density / internal integrity	Less dense (micro-porosity present)	Near-dense, better than HPDC	Fully dense, no porosity
  Pressure tightness	Moderate (may leak under high pressure)	Good (suitable for hydraulic/pneumatic)	Excellent (best for high-pressure fluid systems)
  Machining	Fair (can be abrasive; porosity may cause tool wear)	Good (consistent material)	Excellent (uniform grain structure)
  Heat treatment possible	Limited (can cause blistering due to trapped gas)	Yes (T6 improves strength & ductility)	Yes (T6 is standard)
  Cost (tooling & unit)	High tooling, low unit cost (mass production)	Medium tooling, medium unit cost	Low to medium tooling (if simple shapes), higher unit cost
  Advantages summary	Fast production, complex shapes, good surface finish	Good ductility, pressure tight, heat treatable	Highest strength & ductility, no porosity, excellent fatigue & impact resistance

•


  Summary Recommendation Matrix

  Selecting the ideal process requires balancing volume, budgetary constraints, and performance requirements:

  • Low-volume or Prototype development: Gravity casting remains the most economical choice.
  • High-volume, Low-cost market entry: High-pressure die casting provides rapid output.
  • Good strength & Medium-to-High volume: Low-pressure casting delivers an optimal balance of structural integrity and cost efficiency.
  • Extreme strength & High operational reliability: Heavy forging is the preferred standard to comply with international fire safety standards.

  Engineering teams must carefully choose production processes based on the specialized requirements of individual fire-fighting equipment. Especially when the working environment is extremely harsh or the operational work pressure is relatively high, we must prioritize advanced aluminum forging production technology to manufacture premium durable aluminum fire department connections.

•

• Global Coupling

•


  Partner with Qruck: Your Global Fire Fittings Engineering Experts

  Qruck provides extensive technical support for customers across every stage, including type choice, product design, production, custom assembly, long-term maintenance, and international sales. Reliable fire fittings are critical for creating safe, leak-proof fire department connections during critical rescue situations.

  Understanding which specific fitting is appropriate for the exact job is the first step in selecting correct fire hose couplings, connectors, and adapters. As a dedicated heavy-duty aluminum fire fittings manufacturing specialist and a premium custom fire hose adapters supplier, our robust fittings perform better across a vast spectrum of municipal and industrial applications. Please feel free to contact the engineering team at Qruck today to determine exactly which connector or adapter is best for your specific fire safety application.

• Frequently Asked Questions (FAQ)

  Q1: Why is porosity such a critical issue in aluminum casting processes for fire equipments?

  A1: Porosity creates microscopic voids or gas pockets inside the metal. Under intense water pressure, these voids act as stress concentrators, which can lead to sudden cracking or structural failure of fire fittings. Processes like heavy forging and low-pressure casting significantly reduce or eliminate porosity, ensuring safe operation.

  Q2: How does Qruck ensure the accuracy of threads on fire hose couplings?

  A2: To guarantee seamless deployment, Qruck deploys high-precision precision CNC machined fire hose connectors. Whether the raw component is produced via low-pressure casting or heavy forging, all connecting dimensions and thread boundaries undergo secondary CNC machining to guarantee smooth fitting work.

  Q3: Can high-pressure die cast (HPDC) parts be heat-treated for higher strength?

  A3: Generally, no. High-pressure die casting tends to trap air inside the metal matrix. If you subject these components to high-temperature heat treatments, the trapped gases expand, causing surface blistering and structural warping. For heat-treatable components, Qruck recommends low-pressure casting or heavy forging.
